Dodge Ram 1500 DT Snorkel and Airbox Kit

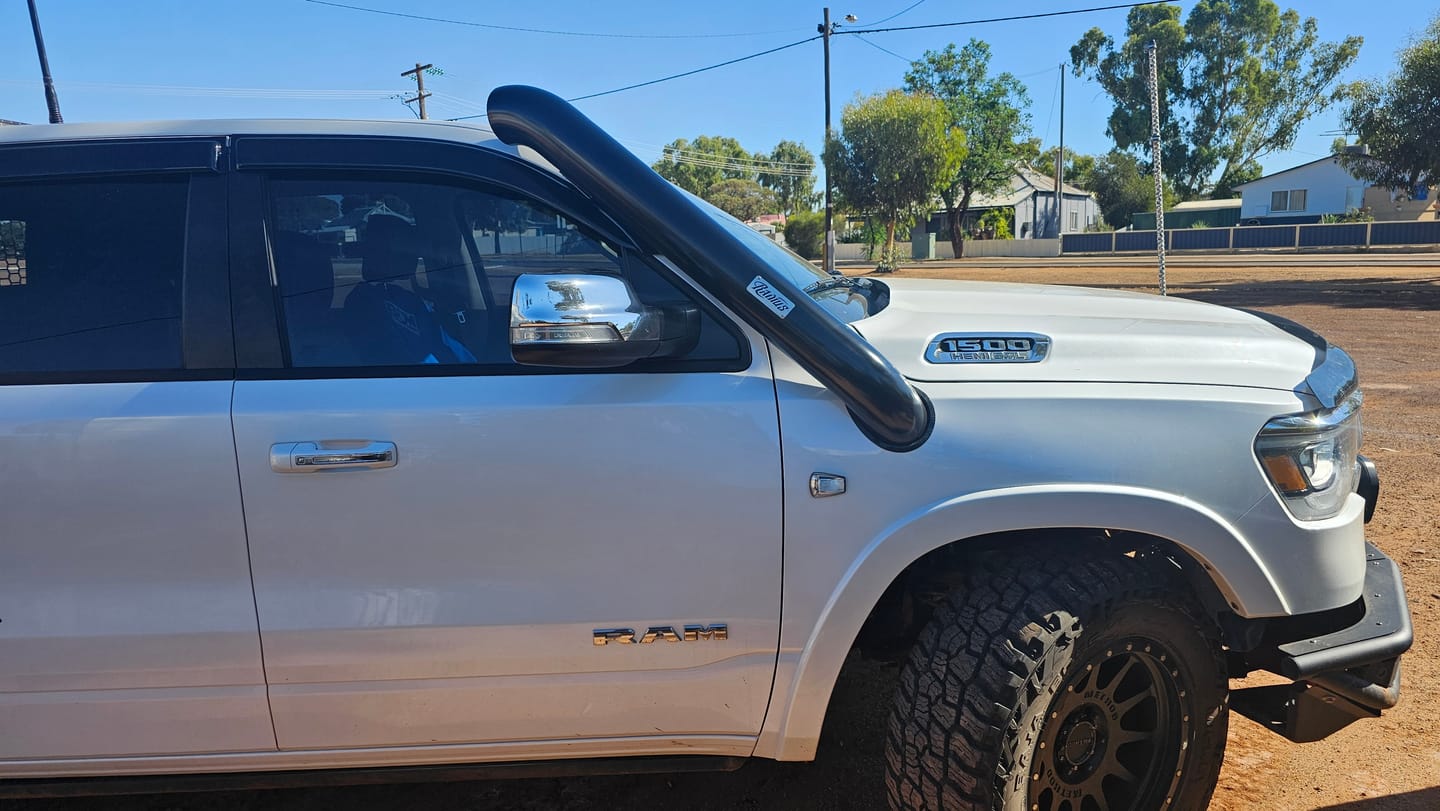

The Radius Fabrications Snorkel and Airbox Kit is purpose-built for the Dodge Ram 1500 DT, converted to right-hand drive in Australia. Each snorkel is handcrafted from 5-inch, 304-grade stainless steel and is available in either a polished stainless finish or a satin black powder coat. Customers can also choose between a standard TIG-welded style or a seamless finish.

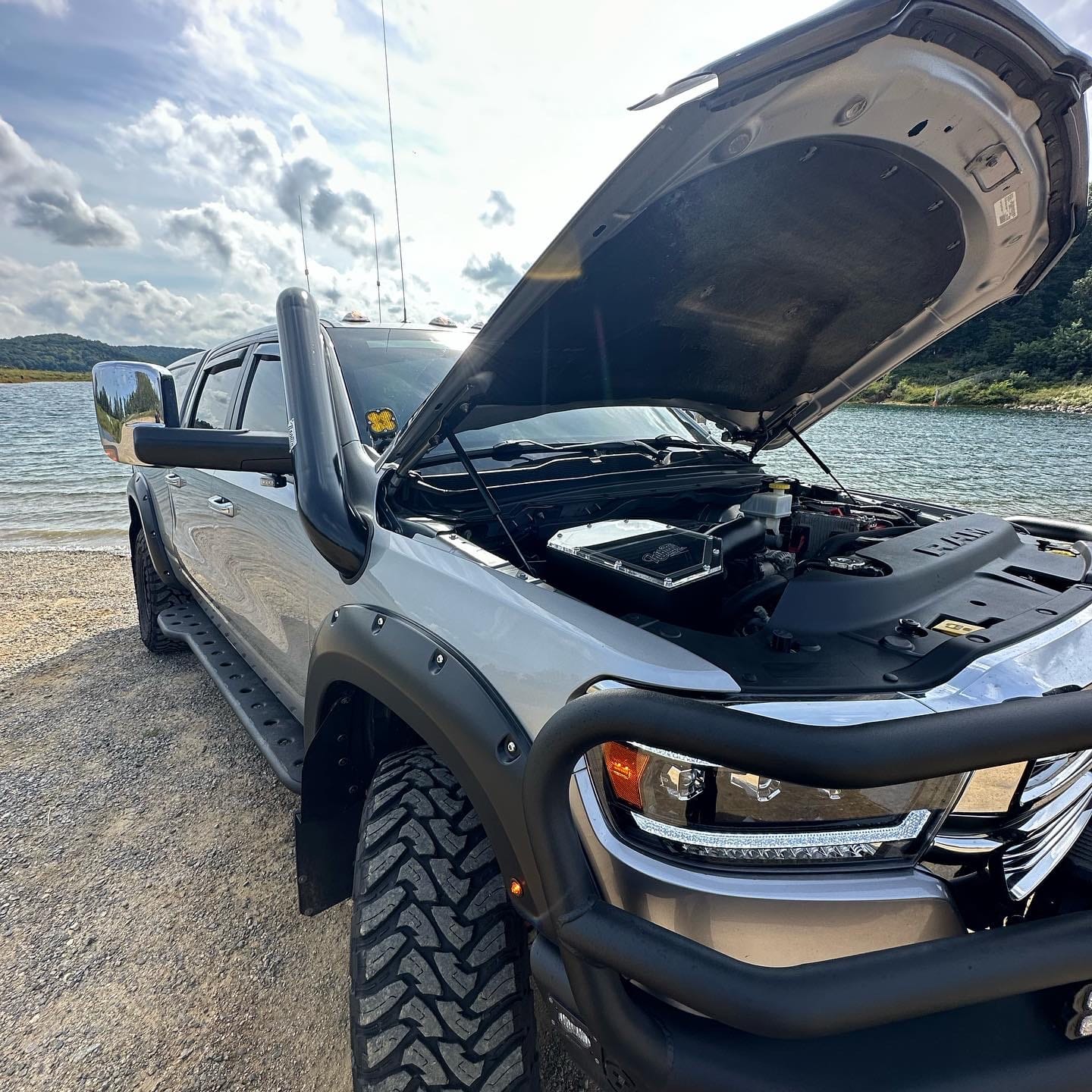

The matching airbox is CNC-cut from aluminium, fitted with an acrylic lid and an Aeroflow AF2711-0870 filter, ensuring optimal airflow and durability. Together, this kit provides maximum engine protection against dust and water while enhancing performance.

Kit Includes:

• 5" stainless steel snorkel

• CAD-designed cutting template

• Silicone joiners

• Hose clamps

• Mounting brackets

• Step-by-step instructions

Fitment

• Kits are manufactured to order due to variations between Ram conversions in Australia.


• A mirrored snorkel option is available, designed to mount on the left (passenger) guard.

• Forward photos of your engine bay and guard when placing an order to confirm fitment.

• Airboxes are built and test-fitted before powder coating, ensuring correct alignment.

• Professional installation is strongly recommended due to variations in entry points and brackets across conversions.

• Kits are not compatible with supercharged engines.

• Kit will only work with an ASV Conversion.

Frequently Asked Questions

Can I purchase the snorkel on its own?
No. The snorkel is only suited to install with the Radius Fabrications airbox and will not fit to the standard airbox.

Does the vehicle need a tune after install?
No. The Radius Fabrications airbox improves airflow without requiring a tune and is designed to work with the factory ECU.

What filter does the airbox use?
The kit includes an Aeroflow AF2711-0870 filter, available from most automotive stockists for easy replacements.

Does the kit suit supercharged Rams?
No, these kits are not compatible with supercharged setups.

What engines is the kit compatible with?
The kit supports both the HEMI V8 and EcoDiesel engine variants, though confirmation is required for each conversion type.

Does the airbox use the factory MAF sensor?
Yes. It supports OEM Mass Air Flow (MAF) and Air Intake Temperature (AIT) sensors for full factory integration.

What about aftermarket turbos or custom piping?
Compatibility will depend on your setup. Photos of the engine bay are required to confirm fitment with custom modifications.

Is the snorkel designed for water crossings?
Yes. The snorkel and airbox are engineered to minimise water and dust ingestion, with a drainage port at the lowest point of the airbox. For frequent water crossings, a pre-filter is recommended.

Do I need to remove the factory airbox ducting?
Yes. The plastic ducting from the standard airbox must be removed for correct installation.

What size is the snorkel?
The DT Ram snorkel is fabricated in a 5-inch size.

Are these kits suitable for diesel models?
No. At this stage, Radius Fabrications only manufactures snorkel and airbox kits for petrol models.
