Custom Air box to suit Toyota Landcruiser 200 Series VDJ Diesel LC200

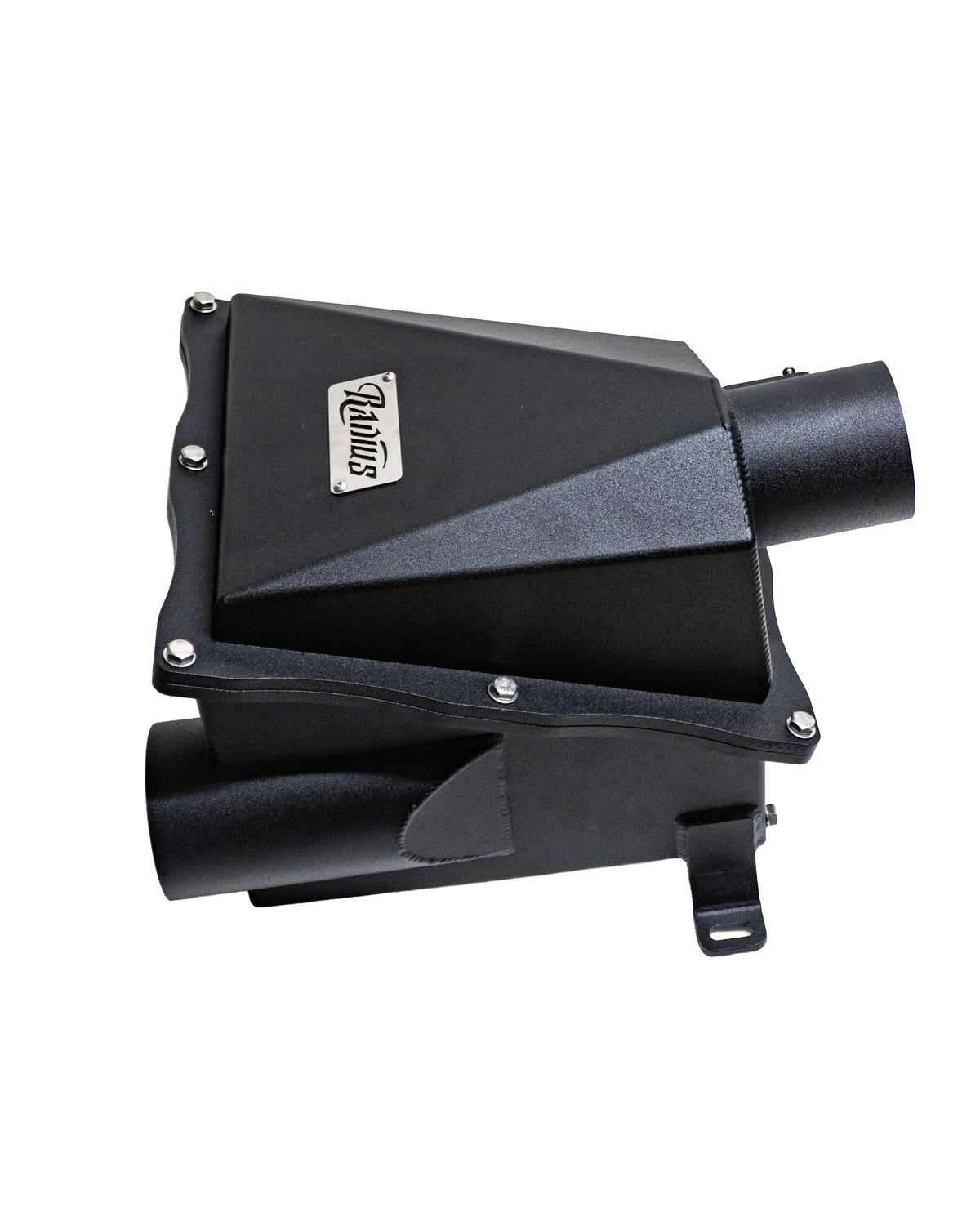

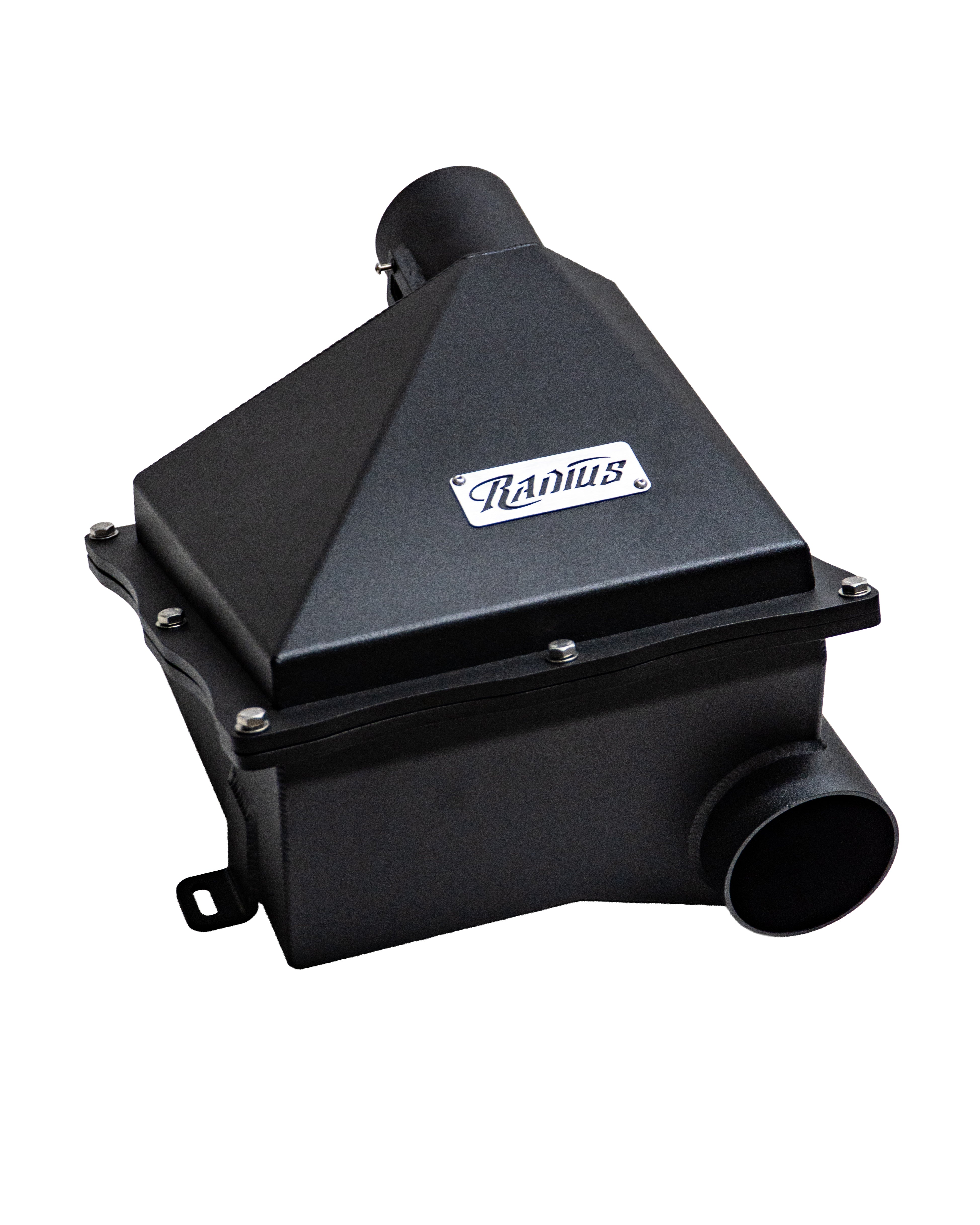

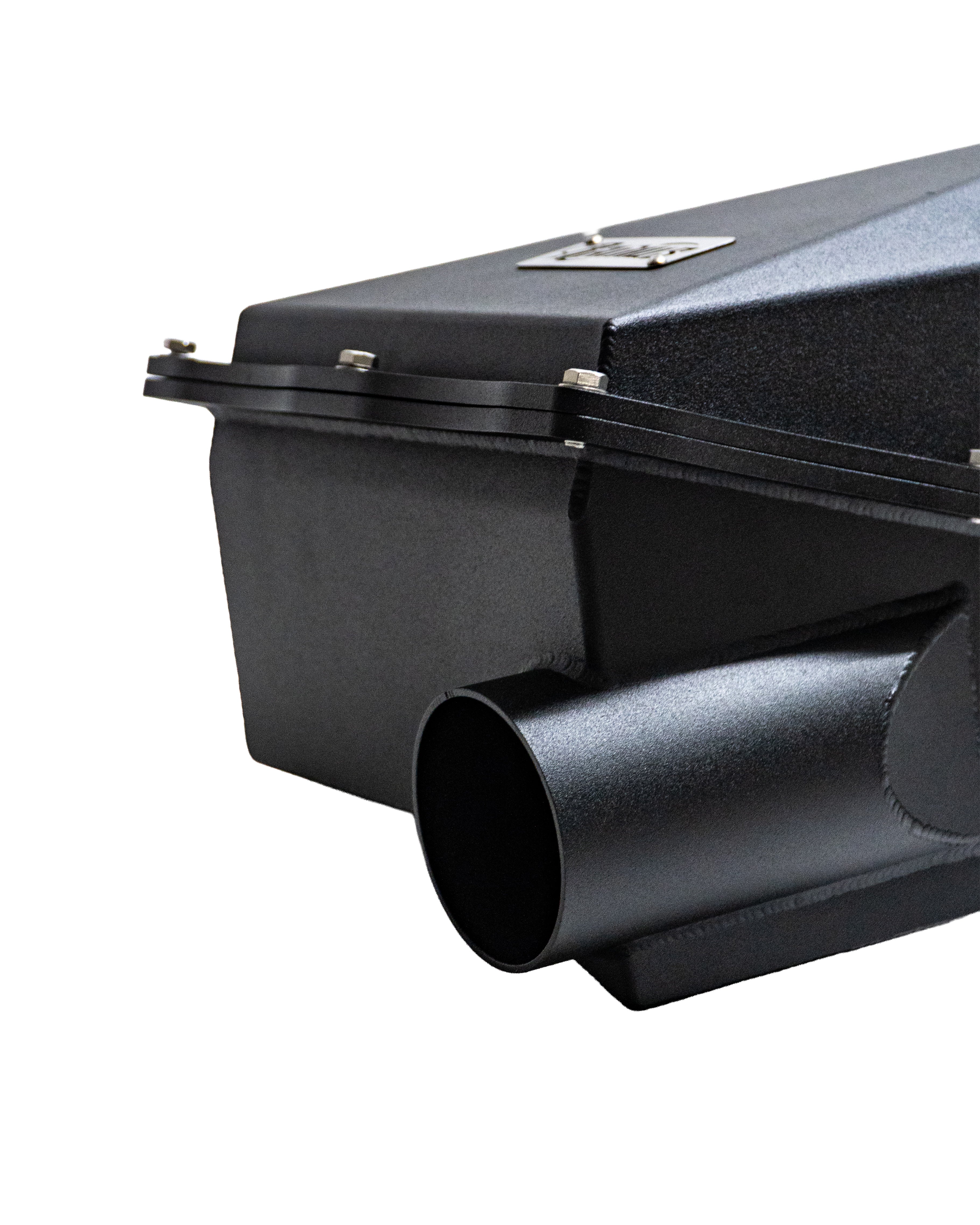

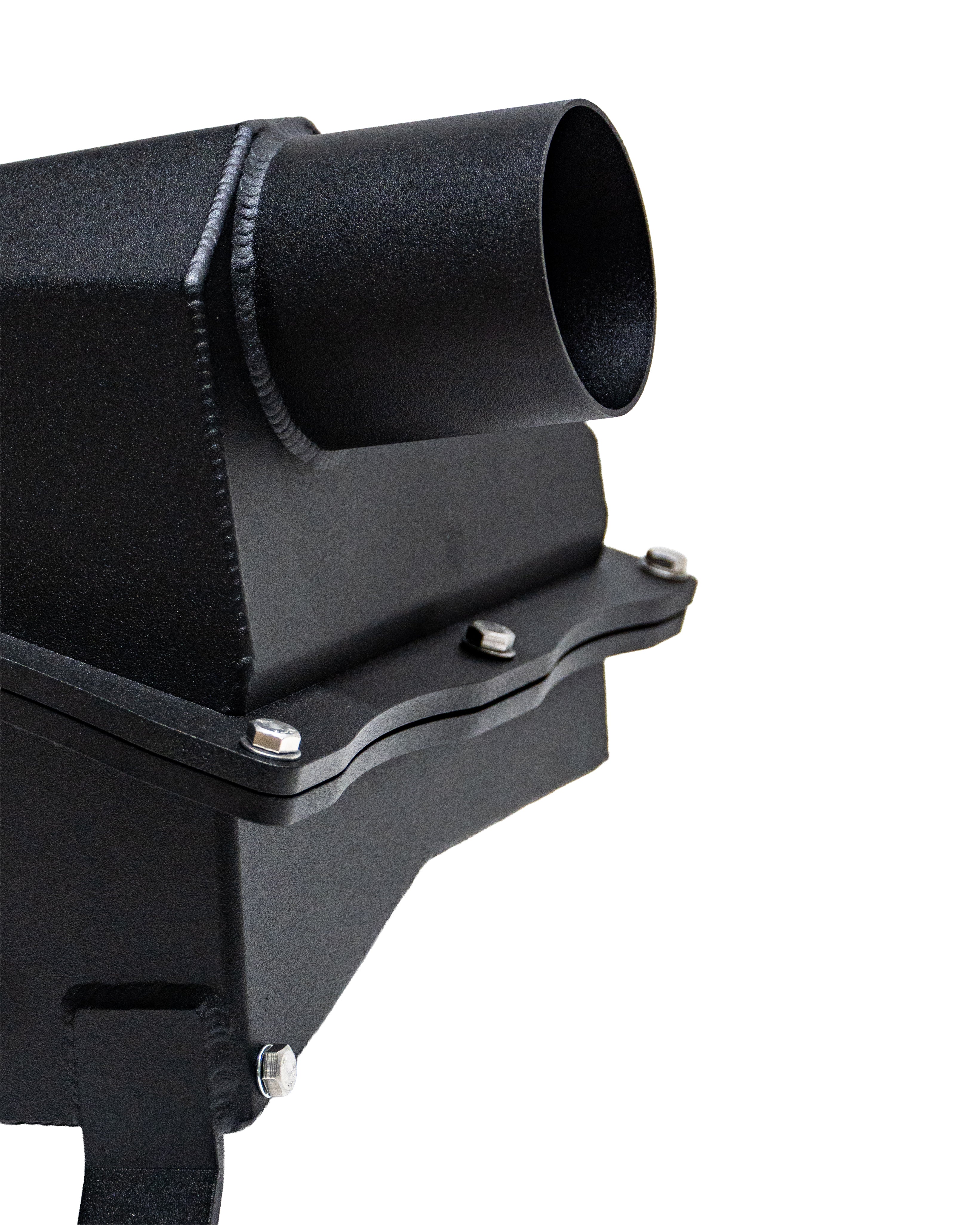

Panel Airbox to Suit Toyota LandCruiser 200 Series VDJ Diesel

The Radius Fabrications Panel Airbox for the Toyota LandCruiser 200 Series VDJ Diesel is a high performance, direct bolt in replacement for the factory airbox, engineered for maximum airflow, filtration, and long-term engine protection.

Designed to suit both Radius Fabrications snorkels and popular aftermarket options such as Safari, this airbox provides excellent flexibility without compromising fitment or performance.

What sets this airbox apart is its panel filter design, chosen for its superior surface area and airflow characteristics. Combined with a CNC routed sealing face, this design ensures a tight seal around the filter to minimise dust ingress, even in harsh touring and off-road conditions.

As one of Radius Fabrications’ longest-standing and best-selling 200 Series airboxes, this unit has proven itself across Australia’s toughest environments.

Each airbox is:

• CNC designed and laser cut in house for precision fitment

• Machined with a CNC routed sealing face for excellent dust control

• Built for reliable airflow, filtration, and extended engine life

• Engineered for a clean, professional factory-style installation

Kit Includes

• Panel airbox assembly to suit Toyota LandCruiser 200 Series VDJ Diesel

• Intake piping from airbox to engine

• Silicone joiners

• Hose clamps

• Stainless steel fasteners

• Mounting brackets

• Installation instructions

Key Features

• Direct replacement for factory airbox

• Designed to suit genuine Toyota panel filter (not supplied)

• Includes intake piping from airbox to engine

• Solid lid design only

• Mounts in the factory airbox location

• Brackets may utilise different factory mounting holes depending on model year

FAQ

Will this airbox fit with an Armax snorkel?

• Yes. If fitting our airbox to an Armax snorkel, you will need to cut 15 mm off the inlet.

What filter does the 200 Series panel airbox use?

• This airbox is designed to suit the genuine Toyota panel filter, which is not supplied.

How does the airbox seal?

• The airbox seals using the genuine Toyota panel filter and clamping pressure once fully assembled.

Does the airbox come with piping?

• Yes, Radius Fabrications supplies the piping kit from the airbox, including silicone straight joiners and hose clamps.


Does the snorkel fit all 200 Series models?

• Yes, the snorkel suits GX, GXL, and VX diesel models.

• Does not suit petrol models.

Do you fabricate a petrol 200 Series airbox?

• No. Radius Fabrications does not fabricate an airbox for petrol 200 Series models.


How long does installation take for the airbox?

• Typical installation time is 2-4 hours for the airbox

Can the airbox handle heavy dust, mud, and extreme conditions?

• Yes. The airbox is engineered with high-flow filtration and a robust sealing system to handle extreme environments including dust, mud, heat, and cold.

Is professional installation recommended?

• Installation instructions are provided, however professional installation is recommended to ensure correct fitment and watertight sealing.

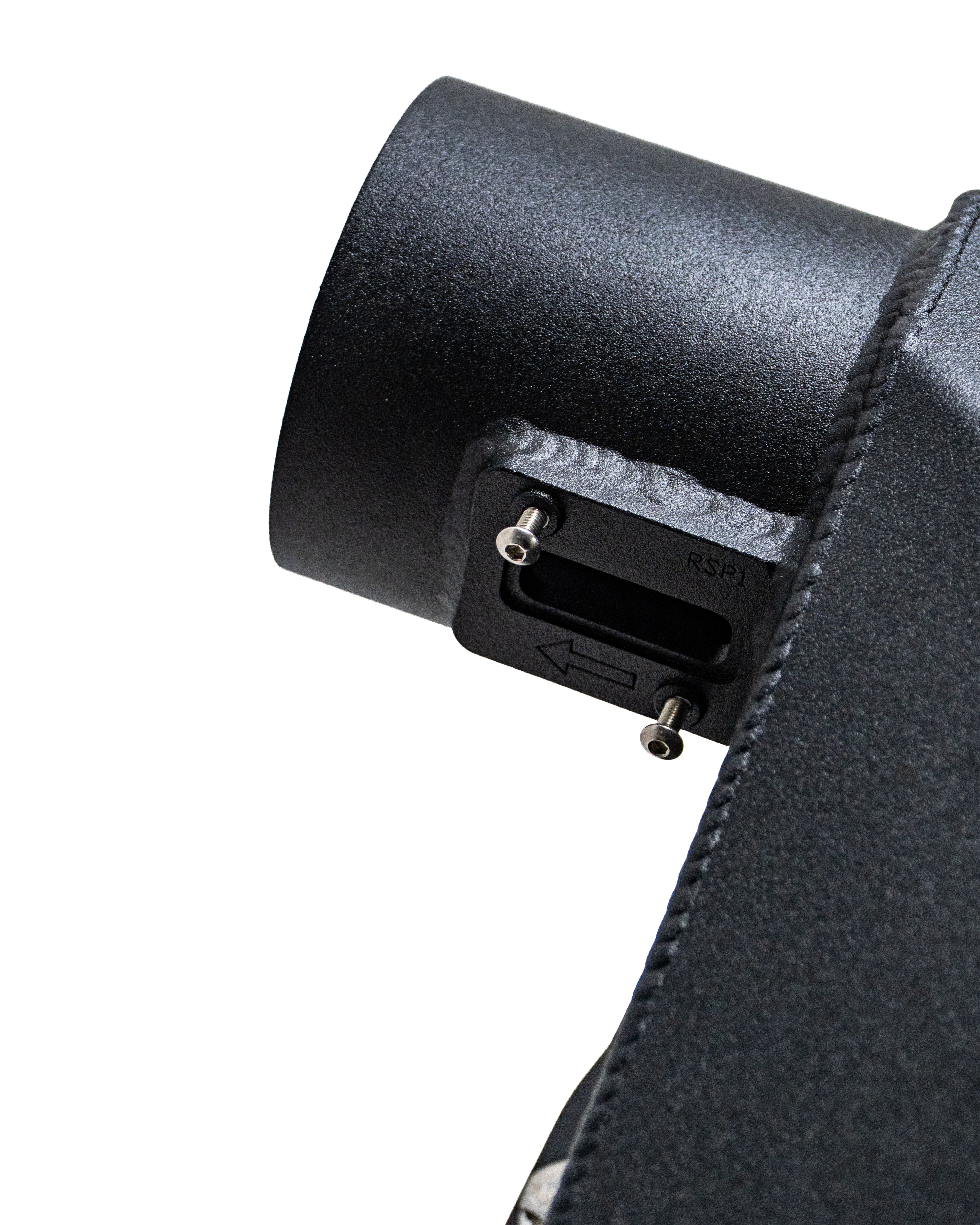

Can the airbox be made without the MAF sensor hole?

• No. The 200 Series airbox is only available with the MAF sensor housing on the 4” port. The airbox is laser cut and specifically designed to include this feature.
