3.5" UFI TD05 Dump Pipe to suit Merg or Standard High Mount TD42

3.5" UFI TD05 Dump Pipe TD42

To suit Radius Fabrications High Mount Manifolds

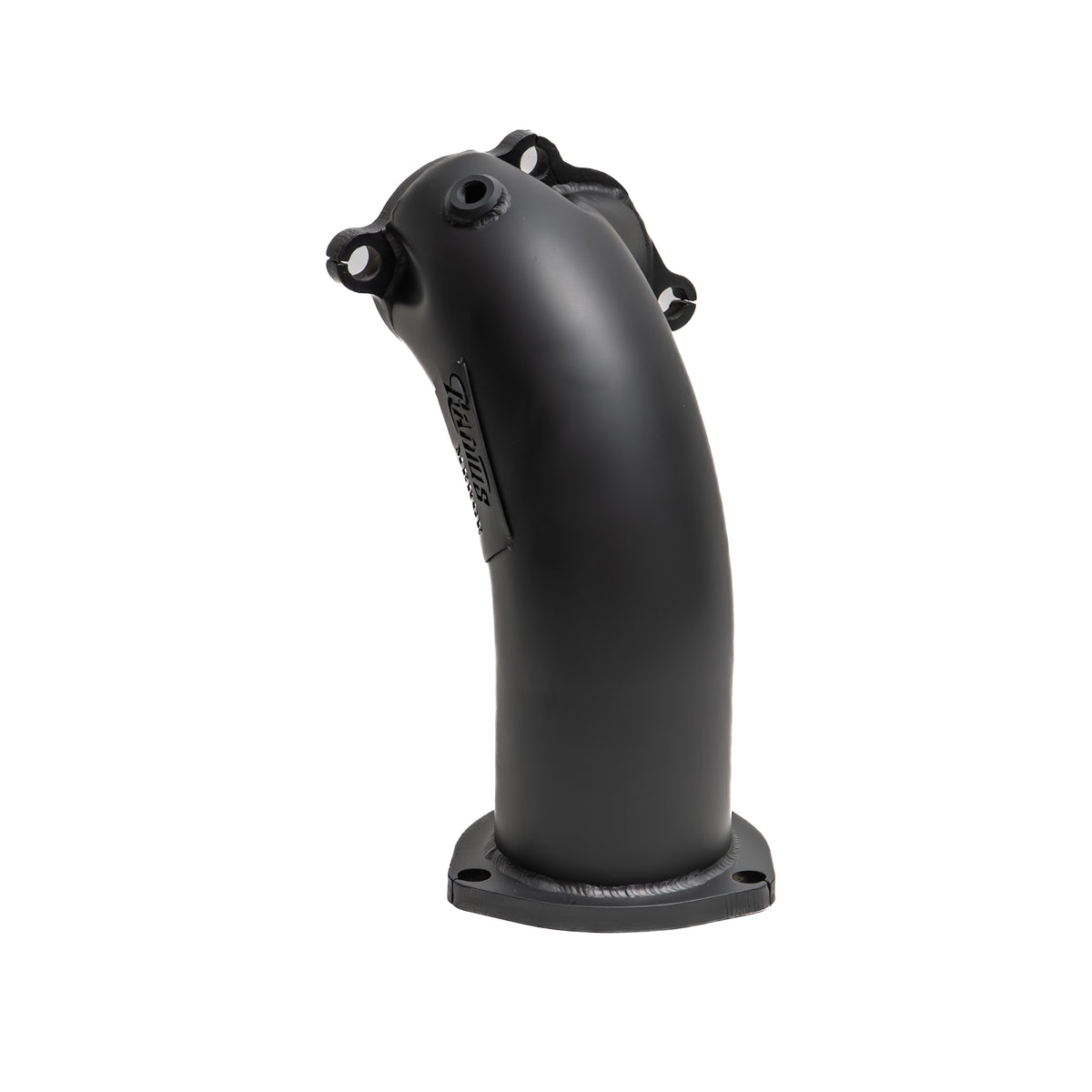

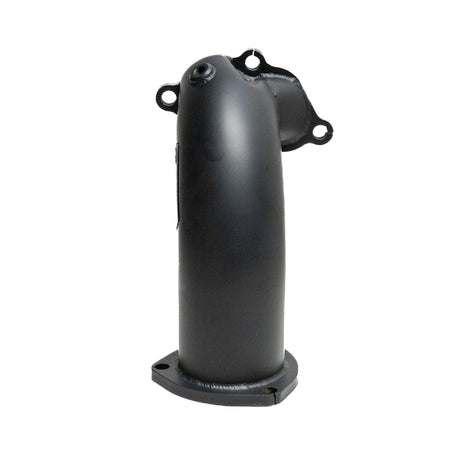

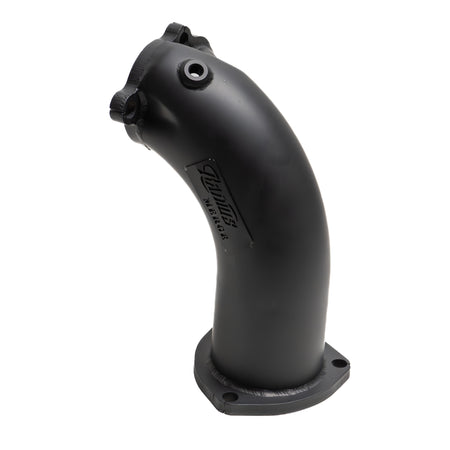

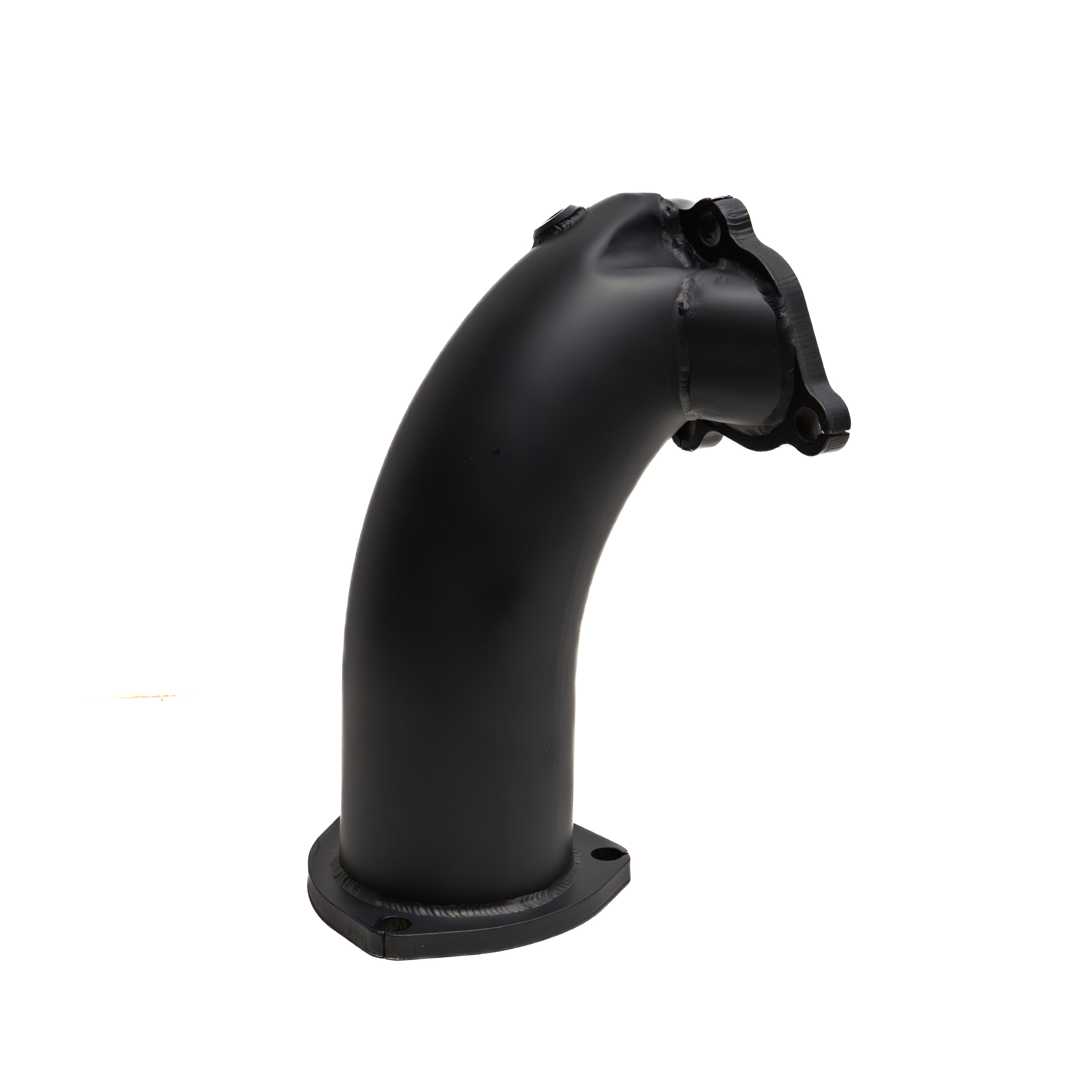

The Radius Fabrications 3.5" UFI TD05 Dump Pipe is designed specifically to suit TD42 applications running a Radius Fabrications High Mount Manifold paired with a UFI TD05 turbo.

This dump pipe has been engineered to maximise exhaust flow straight off the turbo, reducing back pressure and supporting improved spool, EGT control, and overall performance. Fabricated in-house, each dump pipe is built to handle high heat and harsh conditions commonly seen in high-boost TD42 setups.

This product is the high mount 3.5" dump pipe only and is intended for customers chasing higher power levels than a traditional 3" system.

If you are after a smaller option, the 3.0" TD05 High Mount Dump Pipe is available separately.

Key Features

• 3.5" high-flow dump pipe

• Designed for TD42 engines

• Suits TD05 turbo configuration

• Optimised for high mount turbo setups

• Fabricated to reduce exhaust back pressure

• Built for high heat and high boost applications

• Manufactured in Australia

Compatibility

This dump pipe is only compatible with the following combinations:

Turbos

• UFI 4-bolt TD05

• P4x4 TD05

Manifolds

• Radius Fabrications Standard High Mount Manifold

• Radius Fabrications Merge Style High Mount Manifold

This dump pipe will not suit low mount manifolds or non-listed turbo configurations.

FAQ

What engine does this dump pipe suit?

• TD42 engines only.

What turbo does this dump pipe suit?

• UFI TD05 (4-bolt)

• P4x4 TD05
  No other turbo brands or flange patterns are supported.

What manifold does this dump pipe suit?

• Radius Fabrications Standard High Mount

• Radius Fabrications Merge Style High Mount

Is this a high mount or low mount dump pipe?

• This is a high mount dump pipe only.

Is this available in a smaller size?

• Yes, a 3.0" high mount TD05 dump pipe is available separately.

Does this dump pipe include gaskets or hardware?

• No gaskets or hardware are supplied. Customers are required to source these locally.

What NPT ports are included?

• NPT port size: 1/4 NPT (to suit UFI setups).

Will this suit other manifolds or custom setups?

• No. This dump pipe is fabricated specifically for Radius Fabrications high mount manifolds and listed turbo configurations only. Fitment is not guaranteed outside of these combinations.

Is this suitable for high power applications?

• Yes. The 3.5" design is intended for higher horsepower TD42 builds where increased exhaust flow is required.

Is installation included?

• No. This is a supply-only product. Professional installation is recommended.
