Stainless Snorkel to suit Ford RAPTOR Ranger 4" Short Entry

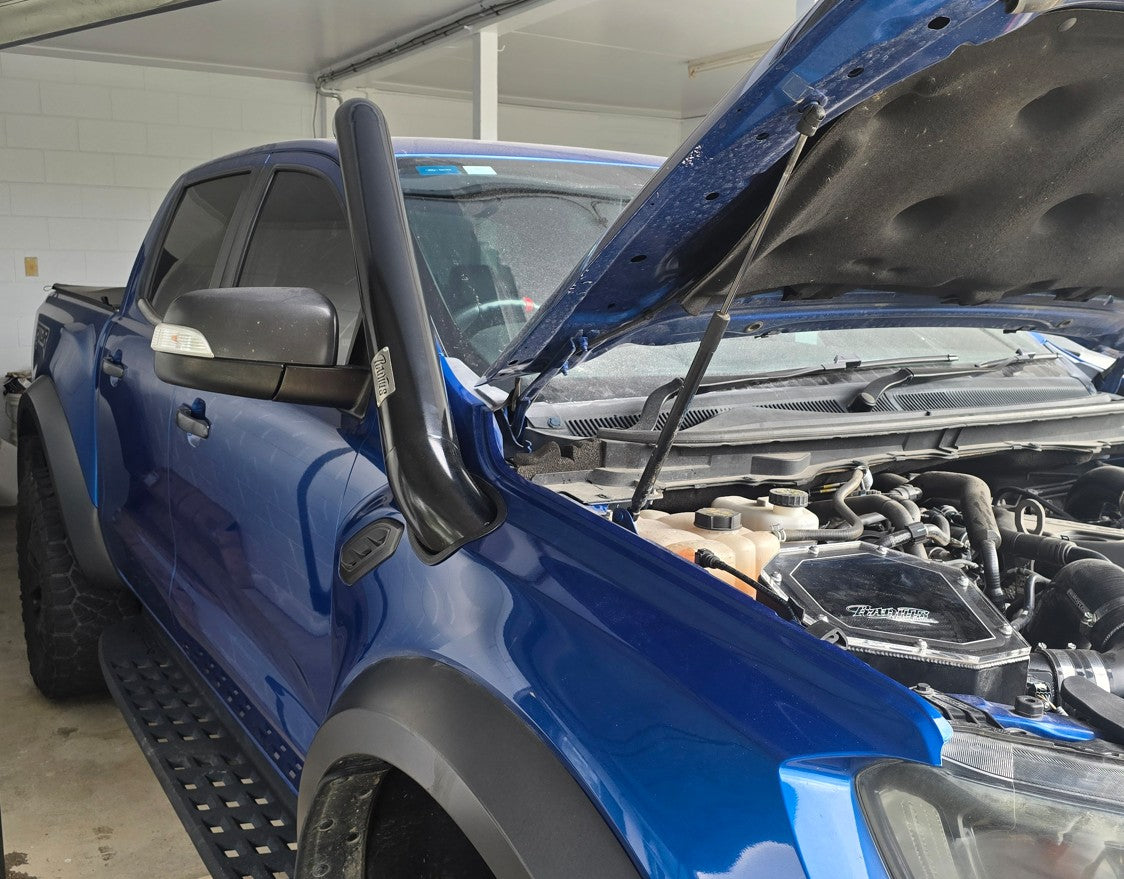

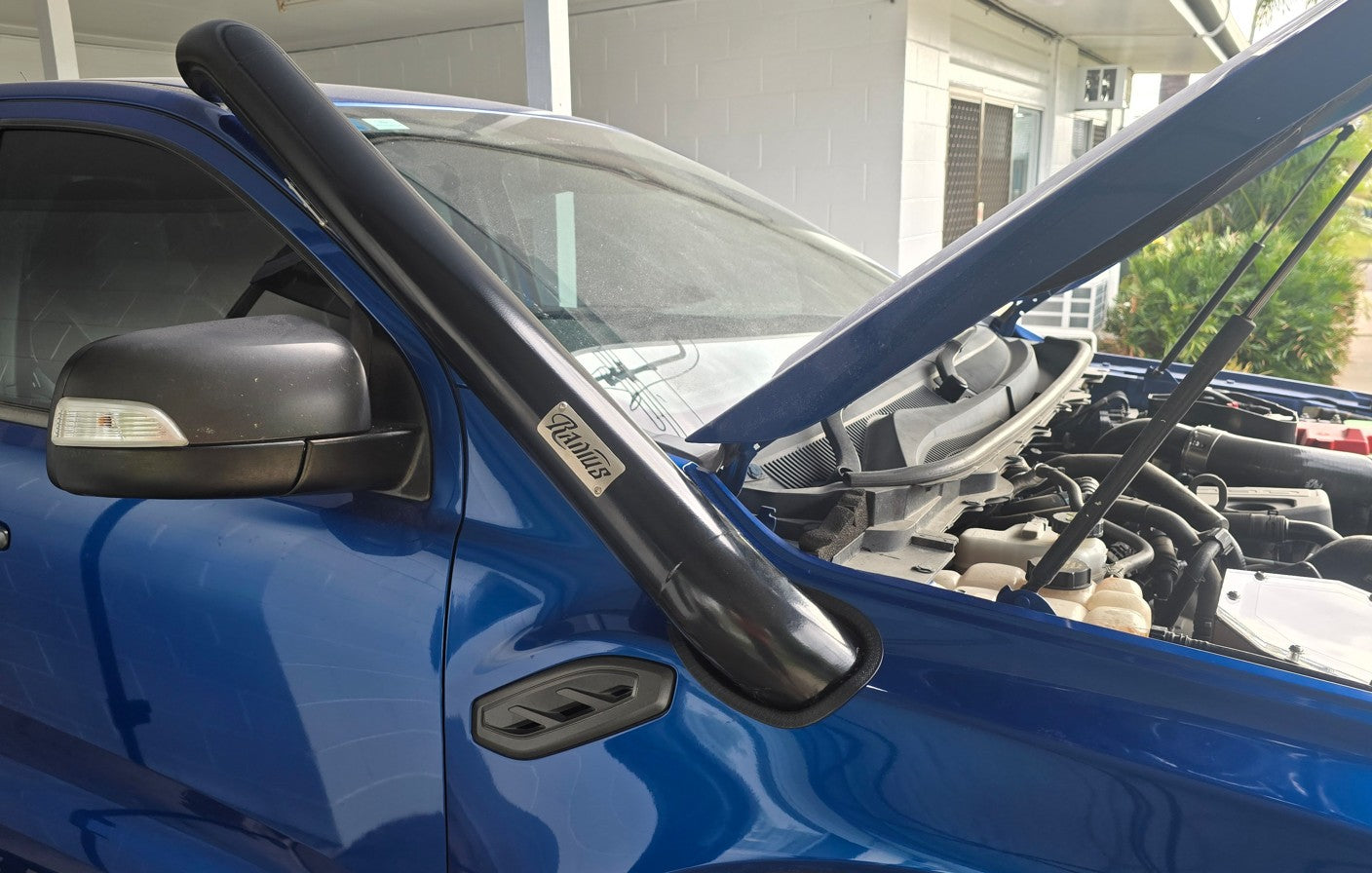

Ford Ranger Raptor 4” Short Entry Snorkel

Take your Ford Ranger Raptor to the next level with the Radius Fabrications 4” Short Entry Stainless Steel Snorkel engineered to maximise airflow, performance, and protection in all conditions.

Designed to deliver cooler, cleaner air to your engine, this snorkel sits high and proud for superior performance in dusty, muddy, and wet environments. Combined with the aggressive styling Radius Fabrications is known for, it’s the upgrade your Raptor should’ve had from factory.

Crafted from premium 316-grade stainless steel, this snorkel is built to handle the harshest Australian conditions while maintaining a sleek, high-end finish. Available in polished, satin black powder coat, or seamless powder-coated options to suit your build style.

Key Features

• 4” stainless steel construction (316-grade) for superior strength and corrosion resistance.

• Short-entry design for compact fitment and optimal airflow.

• Available in polished stainless, satin black powder coat, or seamless finish.

• Designed to improve air intake height for better engine performance and dust reduction.

• Compatible with factory and aftermarket airboxes (3”, 3.5”, or 4” setups).

• CAD-designed cutting template for precise guard modification.

• Built, tested, and fabricated in Australia.

Kit Includes

Everything you need for a complete install at home:

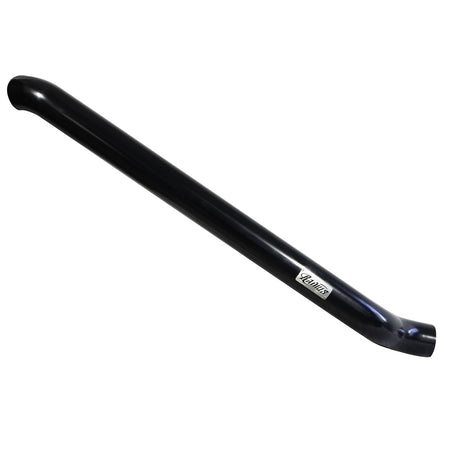

• 4” short-entry stainless steel snorkel

• CAD-designed fitting template

• Silicone joiners (matched to your airbox setup)

• Hose clamps

• Mounting brackets

We recommend using an air hacksaw when cutting the guard for a clean and accurate finish.

Fitment Information

• Fits factory airbox, Radius Fabrications airbox, or aftermarket 3”, 3.5”, or 4” airboxes.

• Standard orders are supplied with silicone to suit the factory airbox unless otherwise specified.

• If ordering to suit an aftermarket setup, please note the size required when placing your order.

• Replacement silicone or parts required due to incorrect order selection will incur shipping costs, payable by the customer.

Please note: Our snorkels are not classed as ‘seamless’ unless the seamless finish option is selected. Finished snorkels will display a small, neat TIG weld join at each bend.

Installation

Installation can be completed at home or by a qualified fitter.
Typical installation time: 3–4 hours.
A cutting template is supplied to ensure precision alignment.

For best results:

• Use an air hacksaw or pneumatic tool for cutting the guard.

• Dry-fit all components before final installation.

• Ensure silicone joins are fully sealed and secure for watertight operation.

Frequently Asked Questions

What airbox does the Ranger snorkel suit?
The snorkel fits the factory airbox, Radius Fabrications airbox, or any aftermarket 3”, 3.5”, or 4” airbox setup.

Does this kit work for the Next Gen Raptor?
We haven’t finalised development for the Next Gen Ranger Raptor yet, but it’s currently in our R&D schedule for future release.

Are your snorkels seamless?
By default, our snorkels are TIG-welded and show a small visible join. A seamless version is available as an upgrade option.

Can I install this myself?
Yes, installation can be completed at home with standard tools, though professional installation is recommended for best alignment and sealing.
