Low Mount Turbo Manifold to suit Toyota 1HFTE - T3

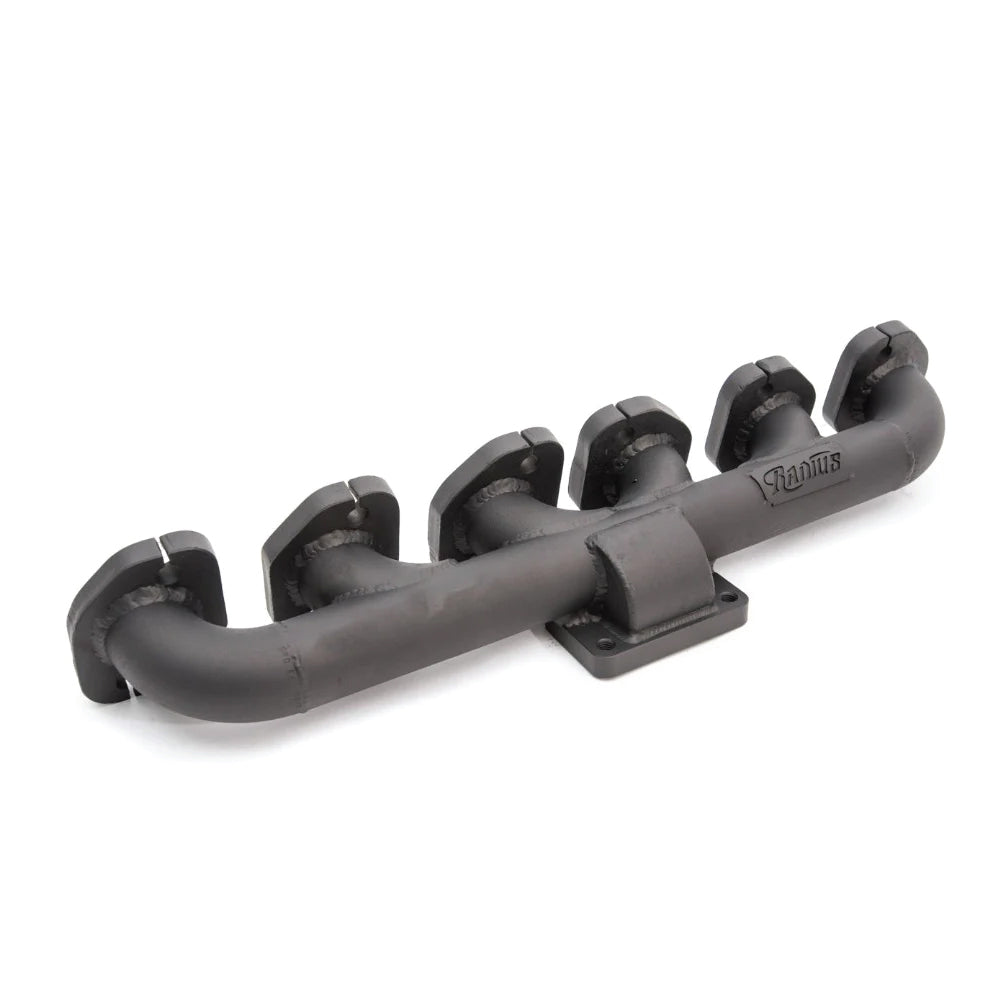

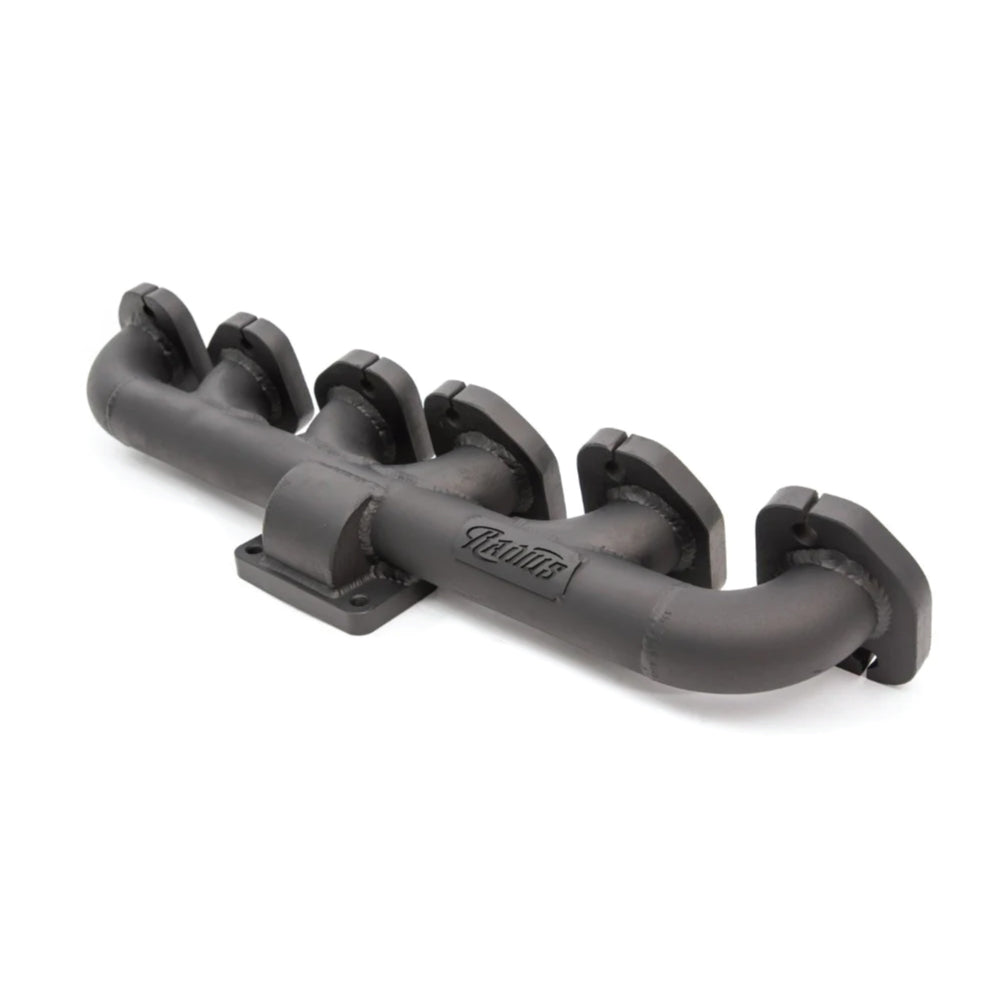

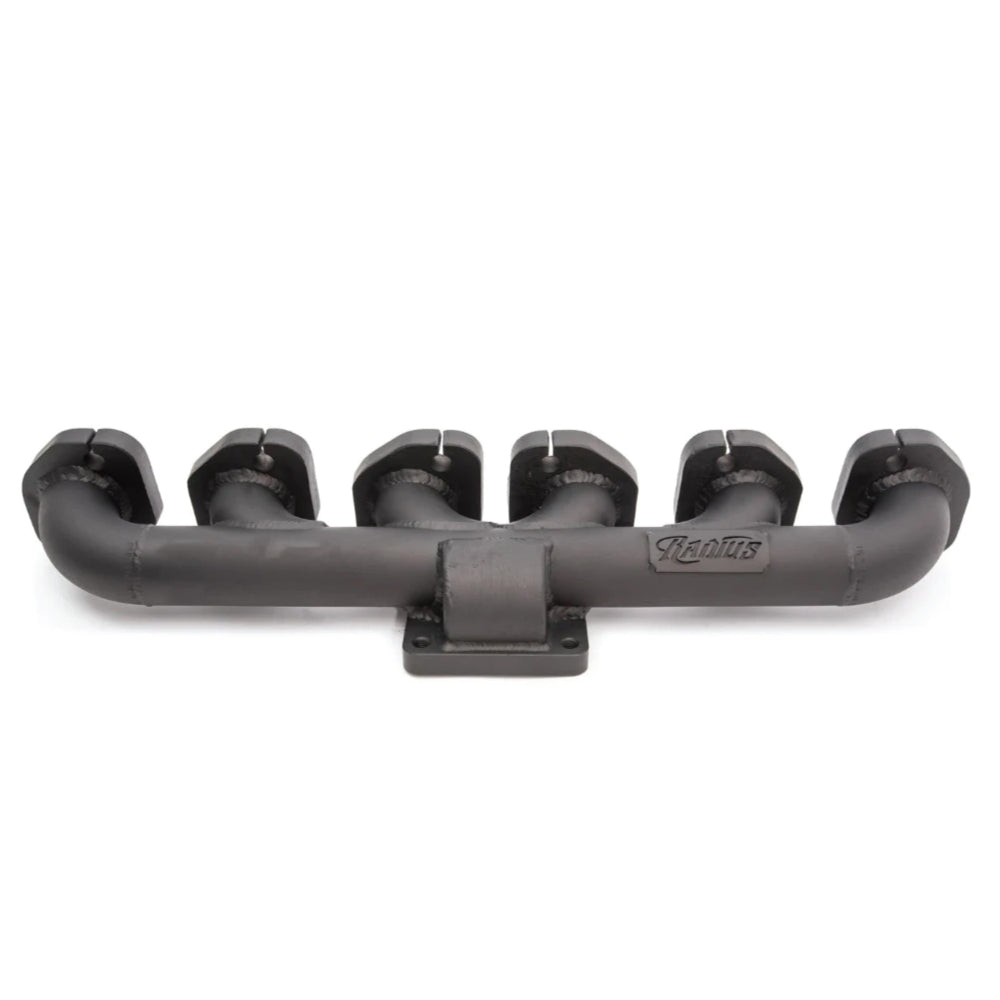

Radius Fabrications 1HFTE Low Mount Turbo Manifold – T3 Flange

The Radius Fabrications 1HFTE Low Mount Turbo Manifold is engineered for reliability, performance, and fitment on serious turbo diesel setups. Designed to suit T3 flanged turbochargers, this manifold is ideal for builds chasing strong response, controlled boost, and proven durability in high-heat environments.

Fabricated using high-quality materials and precision TIG welding, this low mount manifold optimises exhaust gas flow to improve turbo response while maintaining a compact, factory-style turbo position. It is designed as a direct-fit replacement using the factory manifold footprint.

This manifold is intended for single-scroll turbo setups only.

Key Features

• Suits Toyota 1HFTE / 1HDFT engines

• Low mount turbo position

• T3 flanged turbo compatibility

• Precision TIG-welded construction

• Designed for improved exhaust gas flow and turbo response

• Same footprint as the factory manifold for straightforward installation

• Flange thickness: 16mm

• Built for demanding off-road and touring applications

Important Information

• Gaskets are not supplied

• Factory-style exhaust manifold gaskets must be sourced separately

• We recommend replacing engine studs during installation due to thicker flange design

• Studs must be the same diameter but longer than factory to suit the 16mm flange

• Any modification to a standard Radius Fabrications manifold (including adding your own wastegate flange) voids warranty

Optional Wastegate Flange

A wastegate flange can be added by the customer, however:

• Radius Fabrications does not supply wastegate flanges

• Any welding or modification carried out by a third party will void all warranty

FAQ

What turbo flange does this manifold use?

This manifold is fabricated to suit a T3 flanged turbocharger.

What is the exhaust manifold stud size?

• M10 on applications

Are the 1HDFT and 1HFTE manifolds the same?

Yes.
The 1HDFT and 1HFTE use the same manifold design.

Do you make a high mount 1HFTE manifold?

No.
Radius Fabrications does not manufacture a high mount 1HDFTE manifold.

Do you offer twin-scroll manifolds?

No.
We do not manufacture twin-scroll manifolds.

Do you supply gaskets with the manifold?

No.
Gaskets are not supplied and must be sourced locally.
Our manifold uses the same footprint as the factory manifold, allowing standard replacement gaskets to be used.

Do you recommend replacing manifold studs?

Yes.
Because our flange is thicker than standard (16mm), we recommend replacing studs with longer studs of the same diameter.

What horsepower can Radius manifolds handle?

Approximate guidance:

• Low mount manifolds: up to ~200 hp

• High mount manifolds: up to ~280 hp

• Merge manifolds: 280 hp and above

Actual limits depend on tuning, EGT control, turbo selection, and overall setup.
