The Toyota LandCruiser 80 Series fitted with the 1FZ-FE petrol engine occupies a particular place in the Australian four wheel drive community. These vehicles were built to last, and a well-maintained 1FZ-FE with good supporting modifications is still a capable touring and off-road platform decades after production ended. The factory airbox, however, is a restriction point that petrol 80 Series owners regularly look to address. It limits airflow, offers no easy way to inspect the filter without dismantling the housing, and provides no practical drainage if moisture enters the system.

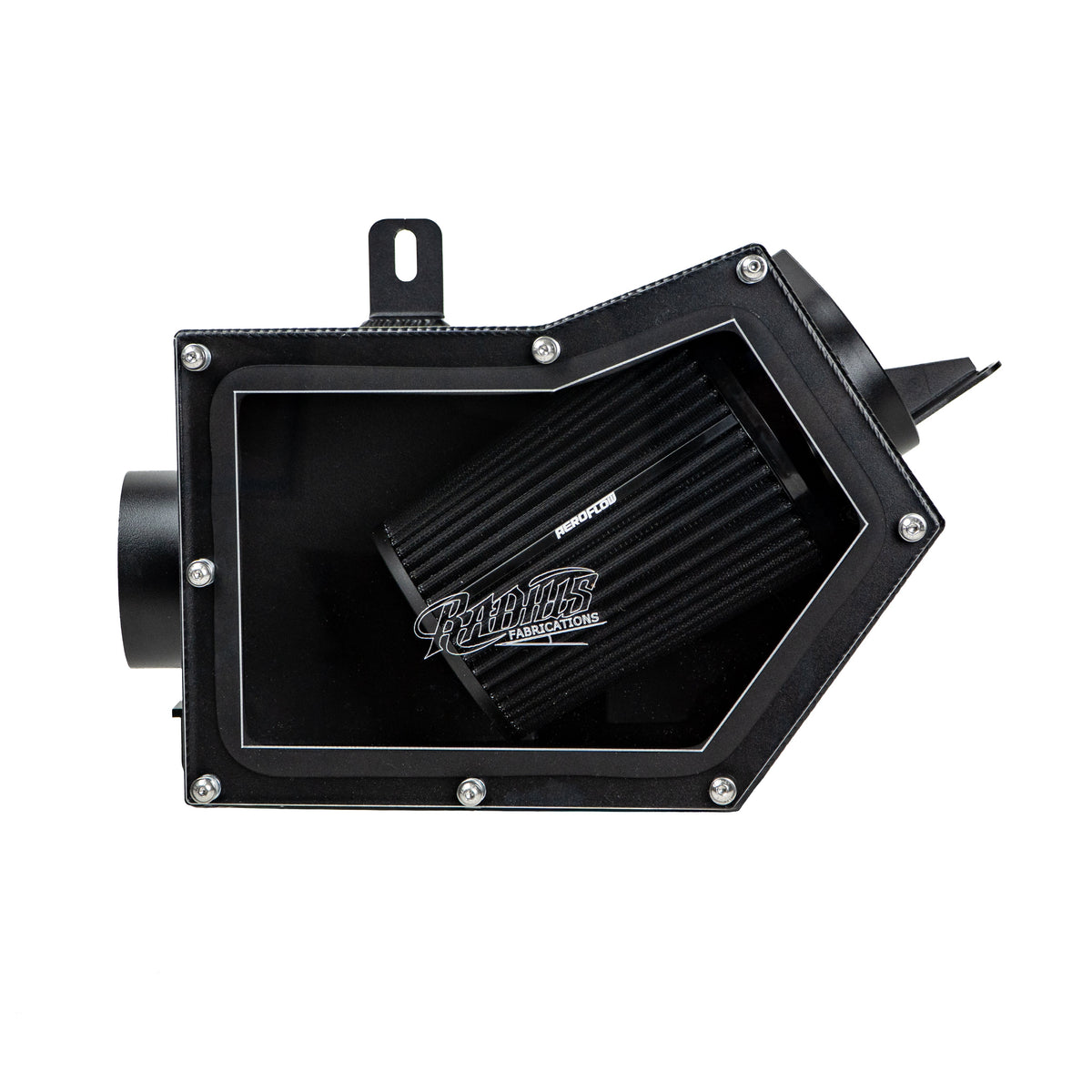

The Radius Fabrications Custom Pod Filter Airbox for the Toyota LandCruiser 80 Series 1FZ-FE is a purpose-built replacement designed specifically for petrol 80 Series owners. It's CNC cut from premium aluminium, TIG welded in-house at our Capalaba, Queensland workshop, and engineered to deliver better airflow and proper filter protection without sacrificing the clean engine bay finish that a quality build demands.
Built Specifically for the 1FZ-FE Petrol Engine
This is an important distinction worth stating clearly from the outset. This airbox is designed specifically for Toyota LandCruiser 80 Series vehicles fitted with the 1FZ-FE petrol engine. It is not a universal 80 Series fitment, and it is not compatible with diesel configurations including the 1HZ or 1HD-T. Before ordering, confirm your engine is the 1FZ-FE petrol rather than assuming compatibility based on body series alone.
The 1FZ-FE powered 80 Series has its own engine bay layout and intake configuration, and the airbox has been designed around that specific setup rather than adapted from a diesel variant. This engine-specific approach is what allows the airbox to sit correctly in the factory position and interface properly with the intake path.
Enclosed Pod Filter Design
The 1FZ-FE airbox uses an enclosed pod filter design rather than an open pod filter arrangement. This distinction matters for practical reasons. An open pod filter sitting in the engine bay pulls in ambient engine bay air, which is significantly hotter than the air available from outside the vehicle. Heat affects air density, and less dense air means less efficient combustion.
The enclosed design addresses this by housing the pod filter within a sealed aluminium box that shields it from direct engine bay heat. The intake draws from a specific path rather than from the surrounding engine bay environment, which is a more controlled and effective approach to air filtration in a touring or off-road context.
A high-flow pod filter is included in every kit, so the airbox arrives ready to install without needing to source a filter separately.
Acrylic Inspection Lid
The clear acrylic inspection lid is one of the practical details on this airbox that owners notice quickly in use. It features the engraved Radius Fabrications logo and allows a visual check of the filter condition without removing the lid or disturbing the intake system. On a touring vehicle that accumulates significant dust between filter changes, being able to see whether the filter needs attention before deciding whether to stop and change it is a genuinely useful feature.
The lid is secured in place and seals the airbox housing properly, so the visual inspection capability doesn't come at the cost of the enclosed design's function.
Integrated Drain Bolt: One Feature, Two Uses
The integrated drain bolt is a considered design detail that handles moisture management in two different operating scenarios.
For everyday driving, the recommendation is to leave the drain bolt out. This allows any moisture that enters the airbox to escape passively rather than accumulating inside the housing. In normal conditions, this keeps the airbox dry without any active management required from the owner.
Before a water crossing, the drain bolt should be installed. This minimises the amount of water that can enter the airbox while the vehicle is in the water, providing an additional layer of protection during the crossing itself. Once clear of the water, the bolt can be removed again to return to passive drainage mode.
This dual-use approach to the drain is practical and straightforward, and it's the kind of detail that comes from designing a product around how 80 Series owners actually use their vehicles rather than purely for a catalogue specification.
Snorkel Compatibility
The 1FZ-FE airbox is designed to work with the Radius Fabrications snorkel system for the Toyota LandCruiser 80 Series. The airbox selection on the product page offers a short entry Radius option as well as provision for other snorkel configurations, where owners can specify their setup in the order notes or send photos for confirmation.
If you're pairing this airbox with a Radius snorkel as a complete intake upgrade, both components have been designed to integrate cleanly. If you're running a different snorkel configuration, include the details at time of ordering so we can confirm compatibility before production begins. Getting the snorkel and airbox combination sorted correctly from the outset avoids fitment issues that take time and cost to resolve after the fact.
CNC Cut Aluminium and TIG Welded Construction
Every airbox we produce starts as precision CNC-cut aluminium before being fully TIG welded in-house at our Capalaba workshop. This fabrication process gives us tight control over the dimensions and finish quality of every unit, which is what allows the airbox to sit cleanly in the factory engine bay position without requiring modification work to make it fit.
The powder coated finish protects the aluminium housing and contributes to the professional under-bonnet appearance that the product is designed to deliver. This is not a raw or rough-finish workshop component. It's a fabricated product that looks at home in a well-presented 80 Series engine bay.
A Direct Replacement for the Factory Airbox
The 1FZ-FE pod filter airbox is positioned as a direct replacement for the factory unit in compatible vehicles. Depending on any existing aftermarket modifications already fitted to your engine bay, minor adjustments may be required, but for a standard 1FZ-FE 80 Series in factory configuration, the fitment is designed to work without significant modification.
Every unit we produce is fabricated to order at our Capalaba workshop, which means lead times apply from the point of order. Current wait times are updated at the top of our website and reflect our actual production schedule rather than a generic timeframe. We operate under a no change of mind policy consistent with the custom made nature of our products, so confirming your engine is a 1FZ-FE petrol and reviewing your snorkel configuration before ordering is the most important step to get right upfront.
If your 80 Series 1FZ-FE petrol is due for a proper airbox upgrade, the Radius Fabrications Custom Pod Filter Airbox delivers the enclosed filter protection, practical inspection access, and clean engine bay finish that the factory unit never offered. Head to the product page to select your snorkel configuration, or contact us if you have questions about fitment specific to your build before placing your order.
This product is not endorsed by or affiliated with Toyota. All vehicle model references are used for compatibility and identification purposes only.
